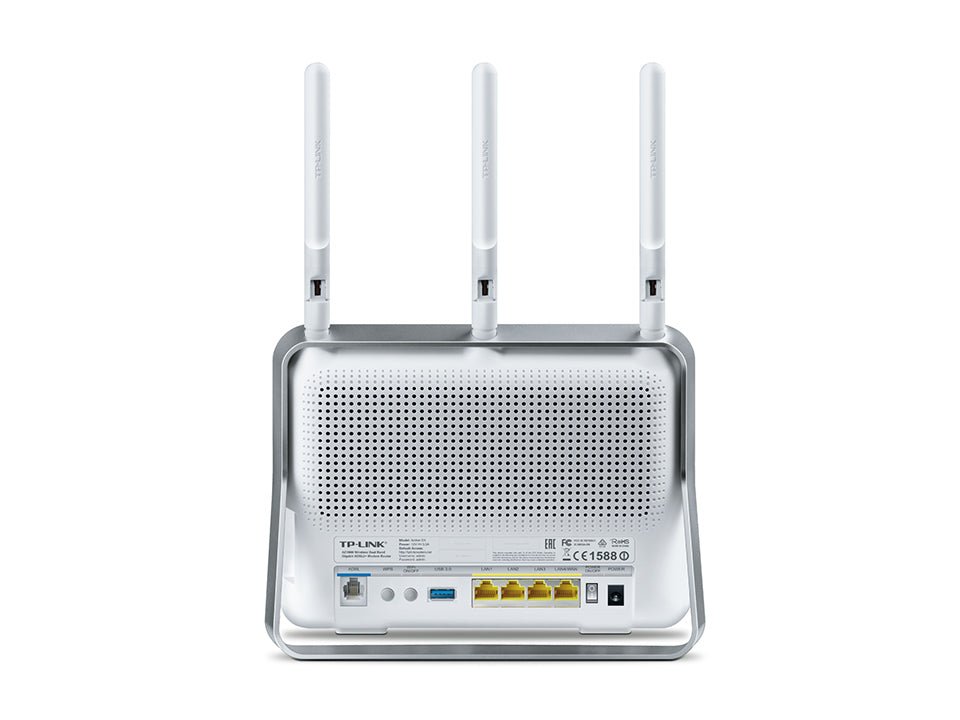

| Interface |
1 10/100/1000Mbps RJ45 WAN/LAN Port |
| 3 10/100/1000Mbps RJ45 LAN Ports |
| 1 RJ11 Port |
| 1 USB 3.0 Port / 1 USB 2.0 Port |
| Button |
1 Power On/Off Switch |
| 1 Wi-Fi On/Off Button |
| 1 WPS Button |
| 1 RESET Button |
| External Power Supply |
12VDC/3.3A |
| IEEE Standards |
IEEE 802.3, 802.3u, 802.3ab |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2 |
| ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) |
| ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), |
| ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions ( W x D x H ) |
8.7 x 3.4 x 6.6 in. (221 x 86 x 168.5mm) |
| Antenna Type |
Three detachable dual band external antennas |
| Antenna Gain |
3 × 2dBi for 2.4GHz and 3 × 3dBi for 5GHz |
| Compatibility |
NBN - Fibre to the Premises (FTTP) - Wireless Router Mode. |
| NBN - Fibre to the Home (FTTH) - Wireless Router Mode. |
| |
| For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
| WIRELESS FEATURES |
| Frequency |
2.4GHz and 5GHz |
| Transmit Power |
<20dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering |
| Wireless Schedule |
Support 2.4GHz and 5GHz Wireless Schedule |
| SOFTWARE FEATURES |
| Quality of Service |
ATM QoS, Bandwidth Control |
| Security |
NAT Firewall, Access Control, MAC / IP / URL Filtering, |
| Denial of Service (DoS), SYN Flooding, Ping of Death |
| IP and MAC Address Binding |
| IPv6 |
IPv6 and IPv4 dual stack |
| Operating Modes |
ADSL Modem Router, Wireless Router |
| Management |
Web Based Configuration(HTTP), Remote management, |
| Command Line Interface, |
| SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| DHCP |
Server, Client, DHCP Client List, |
| Address Reservation, DHCP relay |
| Port Forwarding |
Virtual server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, |
| PPP over ATM (RFC 2364), |
| PPP over Ethernet (RFC2516), |
| IPoA (RFC1577/2225), |
| MER\IPoE (RFC 1483 Routed) |
| Bridge (RFC1483 Bridge) |
| PVC – Up to 8 PVCs |
| Advanced Functions |
Parental Control |
| Network Address Translation (NAT); |
| Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); |
| DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing |
Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Guest Network |
2.4GHz guest network × 1 |
| 5GHz guest network × 1 |
| IPSec VPN |
Supports up to 10 IPSec VPN tunnels |
| OTHERS |
| Certification |
CE, FCC, RCM, RoHS |
| Package Contents |

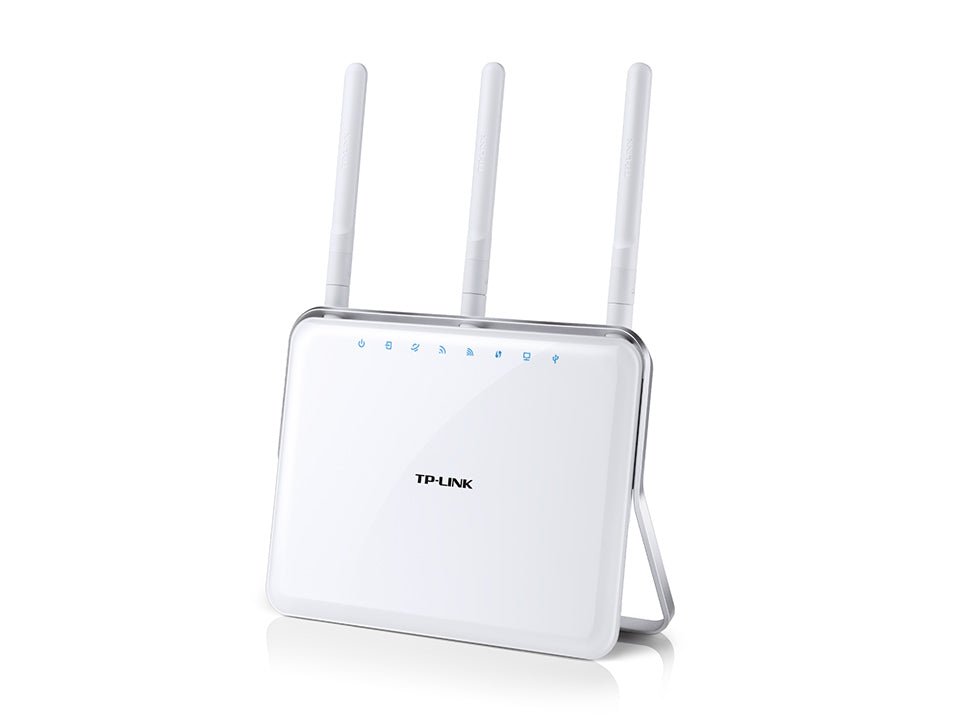

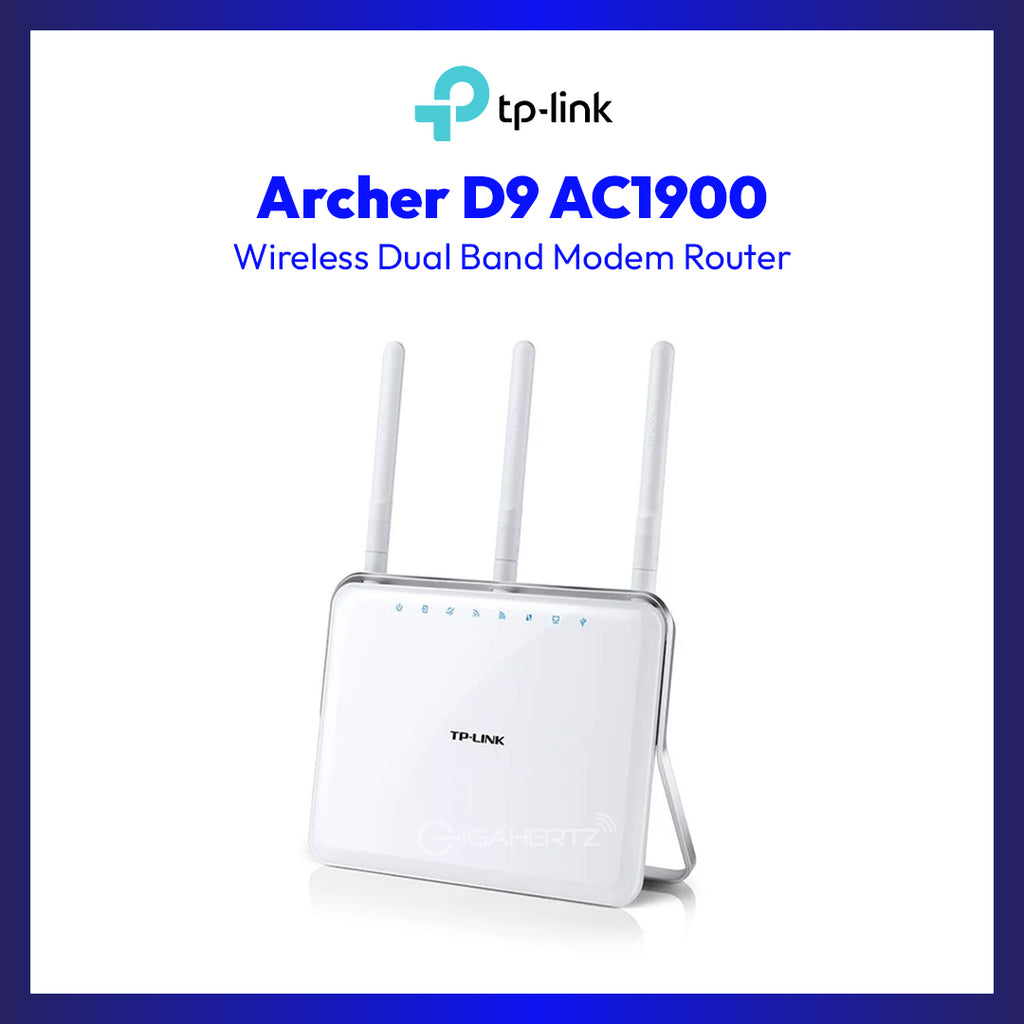

AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router |
| External Splitter |
| RJ-11 Telephone Cable |
| RJ-45 Ethernet Cable |
| Quick Installation Guide |
| Resource CD |
| Power Adapter |
| System Requirements |
Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) |
| Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing |
