| Processor |
Intel® Core™ i7-14650HX, 16C (8P + 8E) / 24T, P-core 2.2 / 5.2GHz, E-core 1.6 / 3.7GHz, 30MB
|
| Graphics |
NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 140W
|
| Chipset |
Intel® HM770 Chipset
|
| Memory |
1x 16GB SO-DIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable
|
| Max Memory |
Up to 64GB DDR5-5600
|
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®
|
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB
|
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots
|
| Card Reader |
microSD Card Reader
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3287 codec
|
| Speakers |
Stereo speakers, 2W x2, optimized with Nahimic Audio
|
| Camera |
FHD 1080p with E-shutter
|
| Microphone |
2x, Array
|
| Battery |
Integrated 80Wh
|
| Power Adapter |
230W Slim Tip (3-pin)
|
| Special Features |
AI Chip: LA1
|
| DESIGN |
| Display |
16" WQXGA (2560x1600) IPS 350nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®, G-SYNC®, Low Blue Light
|
| Touchscreen |
None
|
| Color Calibration |
Factory Color Calibration
|

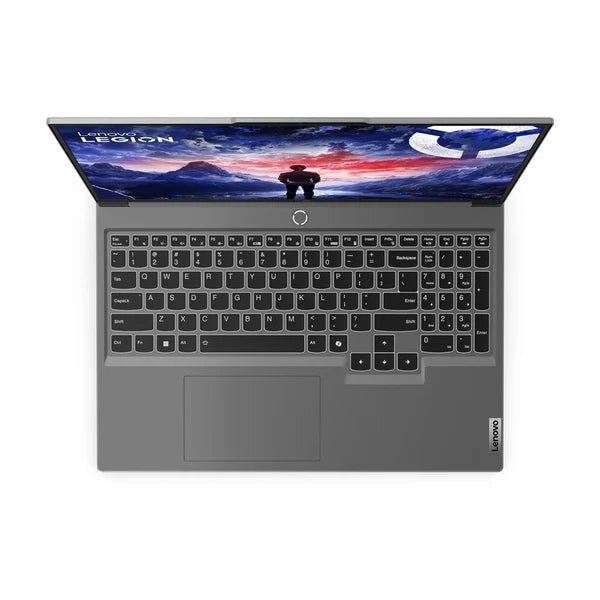

| Keyboard |
4-Zone RGB Backlit, English
|
| Touchpad |
Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)
|
| Case Color |
Luna Grey
|
| Surface Treatment |
Aluminium Stamping (Anodized with Sandblasting)
|
| Case Material |
Aluminium (Top), PC-ABS (Bottom)
|
| Dimensions (WxDxH) |
359.7 x 262.3 x 19.7-25.2 mm (14.16 x 10.33 x 0.78-0.99 inches)
|
| Weight |
Around 2.36 kg (5.2 lbs)
|
| SOFTWARE |
| Operating System |
Windows® 11 Home Single Language, English
|
| Bundled Software |
Office Home & Student 2021
|
| CONNECTIVITY |
| Ethernet |
100/1000M (RJ-45)
|
| WLAN + Bluetooth |
Wi-Fi® 6E, 802.11ax 2x2 + BT5.2
|

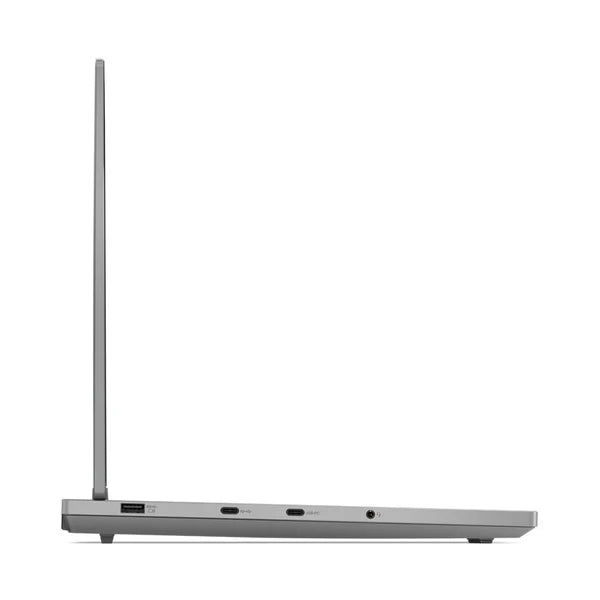

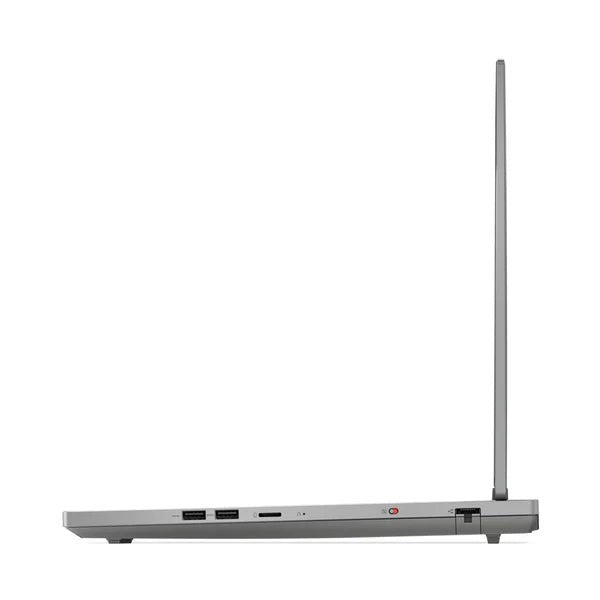

| Standard Ports |
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with Lenovo® PD 140W and DisplayPort™ 1.4
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Card reader
- 1x Power connector
|
| Security Chip |
Firmware TPM 2.0 Enabled
|
| Fingerprint Reader |
None
|
| Other Security |
E-shutter
|
