| PERFORMANCE |
| Processor |
AMD Ryzen™ Z1 Extreme (8C / 16T, 3.3 / 5.1GHz, 8MB L2 / 16MB L3)
|
| Graphics |
Integrated AMD Radeon™ Graphics
|
| Chipset |
AMD SoC Platform
|
| Memory |
16GB Soldered LPDDR5x-7500
|
| Memory Slots |
Memory soldered to systemboard, no slots
|
| Max Memory |
16GB soldered memory, not upgradable
|
| Storage |
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
|
| Storage Support
|
One drive, up to 1TB M.2 2242 SSD
|
| Storage Slot |
One M.2 PCIe® 4.0 x4 slot
|
| Card Reader |
microSD Card Reader
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio
|
| Speakers |
Stereo speakers, 2W x2
|
| Camera |
None
|
| Microphone |
2x, Array
|
| Battery |
Integrated 49.2Wh
|
| Power Adapter |
65W USB-C® Slim (Wall-mount)
|
| Special Features |
Legion Coldfront cooling system
|
| DESIGN |
| Display
|
8.8" WQXGA (2560x1600) IPS 500nits Glossy / Anti-fingerprint, 97% DCI-P3, 144Hz, Corning® Gorilla® Glass 5, Low Blue Light, Touch
|
| Touchscreen |
In-cell, 10-point Multi-touch
|
| Touchpad |
Buttonless Mylar® surface touchpad (on the right controller), 28.5 x 28.5 mm (1.12 x 1.12 inches)
|
| Case Color |
Shadow Black
|
| Surface Treatment |
Painting (Gamepad), Laser Special Texture (Controllers)
|
| Case Material |
PC + GF (Gamepad), PC-ABS (Controllers)
|
| Controls |

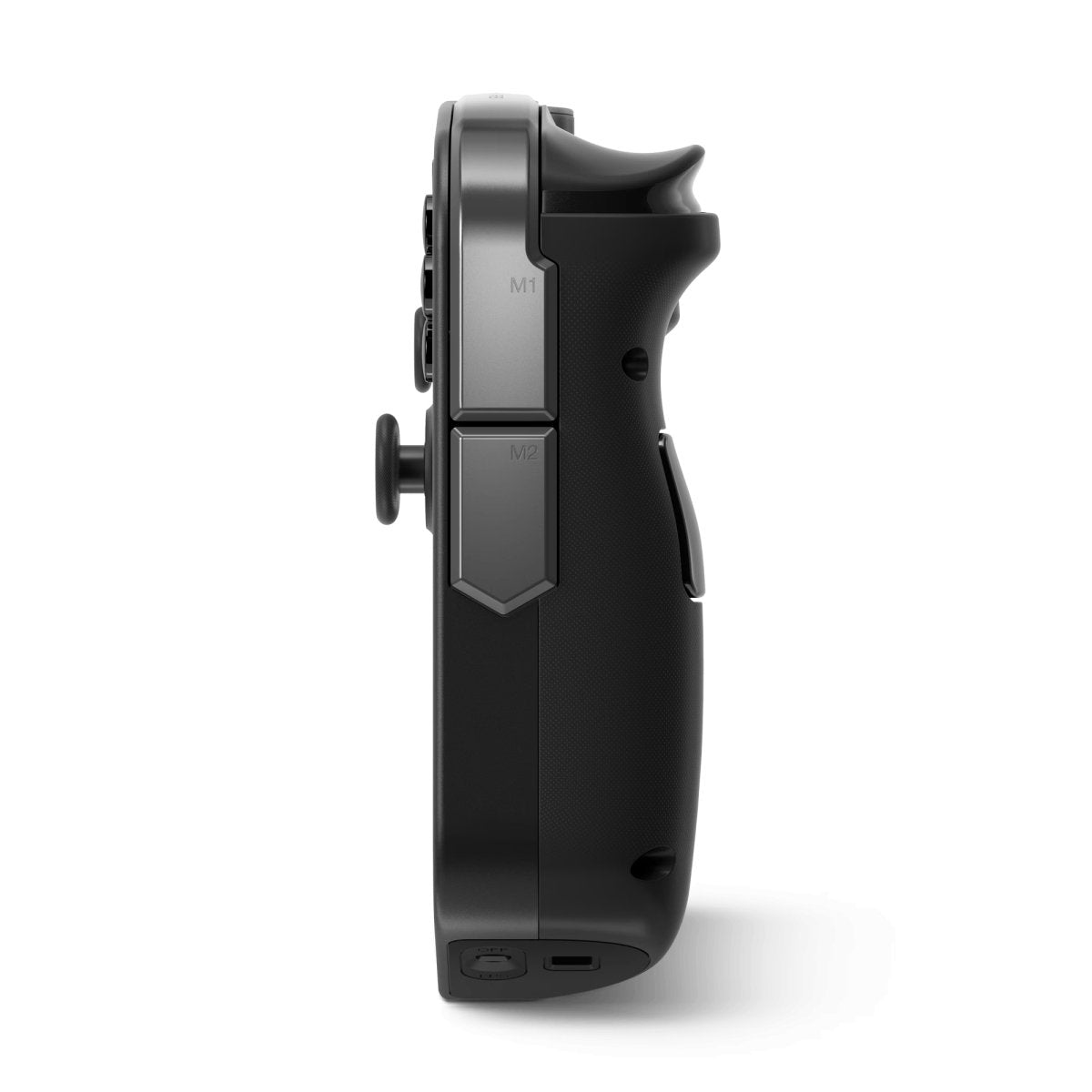

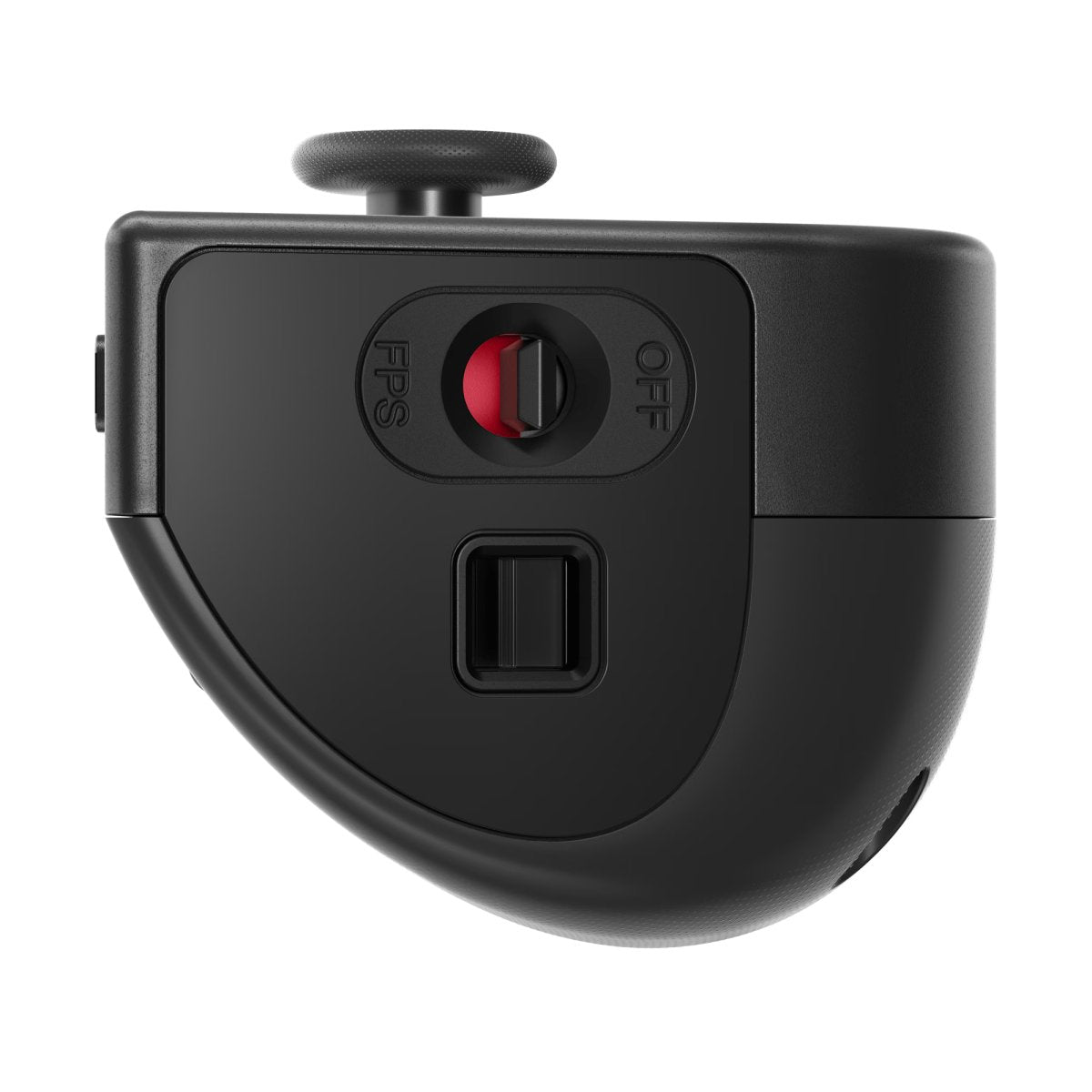

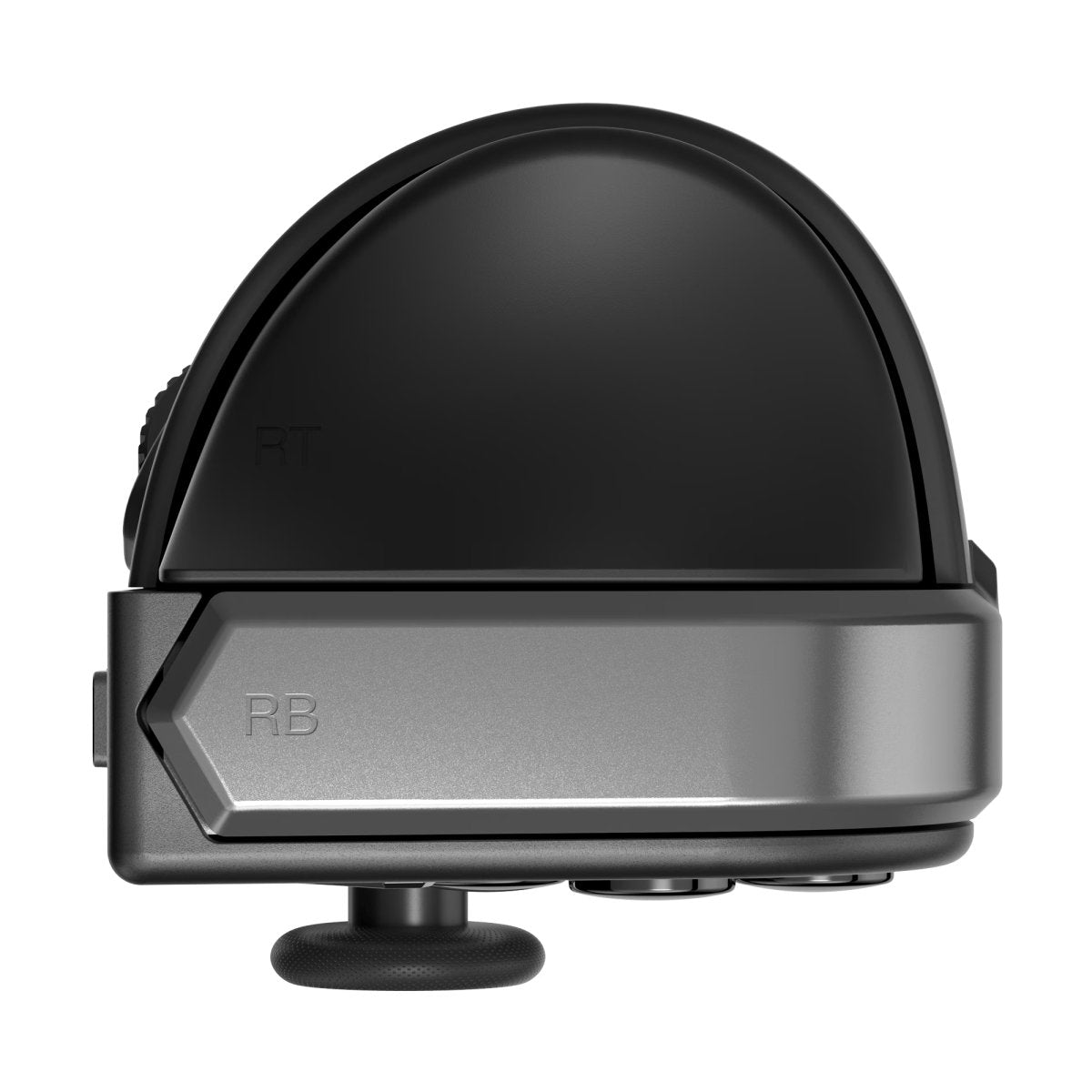

A B X Y buttons D-pad Touchpad FPS mode switch Mouse wheel Left & right Joysticks Left & right release buttons LB button M1 / RB button M2 button Y1 & Y2 buttons M3 & Y3 buttons 4x function buttons
|
| Dimensions (WxDxH)
|
- Gamepad | 210 x 131 x 20.1 mm (8.27 x 5.16 x 0.79 inches)
- Gamepad with controllers | 298.83 x 131 x 40.7 mm (11.76 x 5.16 x 1.60 inches)
- Carry bag | 332 x 162 x 83 mm (13.07 x 6.38 x 3.27 inches)
|
| Weight
|
- Gamepad | Less than 640 g (1.41 lbs)
- Gamepad with controllers | Less than 854 g (1.88 lbs)
|
| Others |
|
| SOFTWARE |
| Operating System |
Windows® 11 Home Single Language, English
|
| Bundled Software |
Office Trial
|
| CONNECTIVITY |
| Ethernet |
No Onboard Ethernet
|
| WLAN + Bluetooth
|
AMD Wi-Fi® 6E RZ616, 11ax 2x2 + BT5.3
|
| Standard Ports |
- 2x USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Card reader
- 2x Pogo pin connector (5-point)
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 Enabled
|
| Fingerprint Reader |
None
|
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in
|
| Included Upgrade |
2Y Depot/CCI -IPENTRY (ESS)
|
| ACCESSORIES |
| Bundled Accessories
|
Carry Bag (with Controller Dock)
|
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 6
- ErP Lot 26
- RoHS compliant
|
