Description

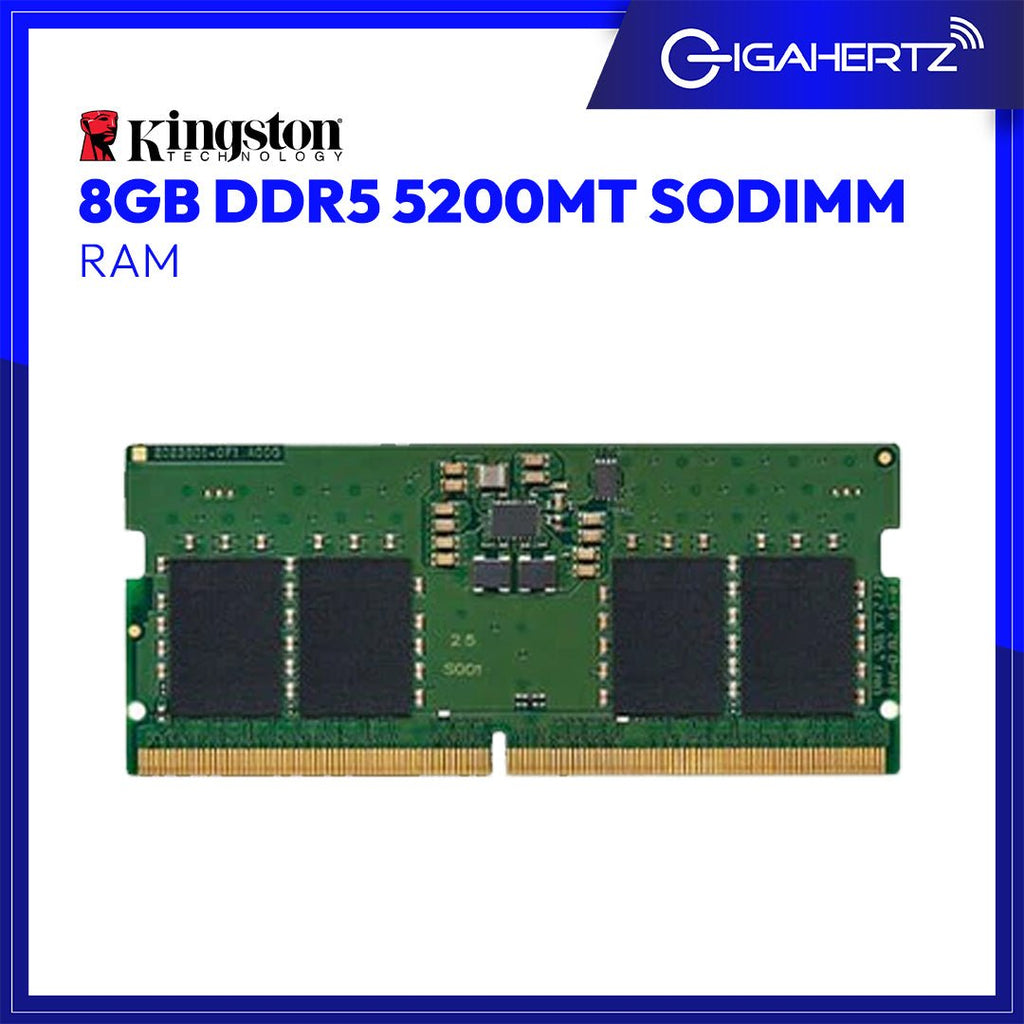

This document describes ValueRAM's KVR52S42BS6-8 is a 1G x 64-bit (8GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
CL(IDD) Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) UL Rating Operating Temperature Storage Temperature 42 cycles 48ns(min.) 295ns(min.) 32ns(min.) 94 V - 0 0o C to +85o C -55o C to +100o C
