Description

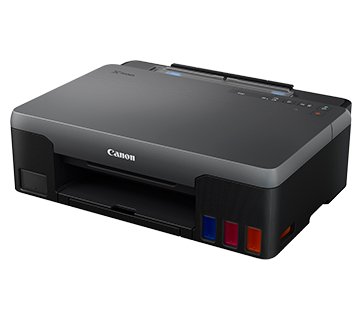

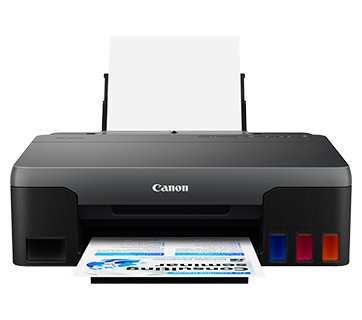

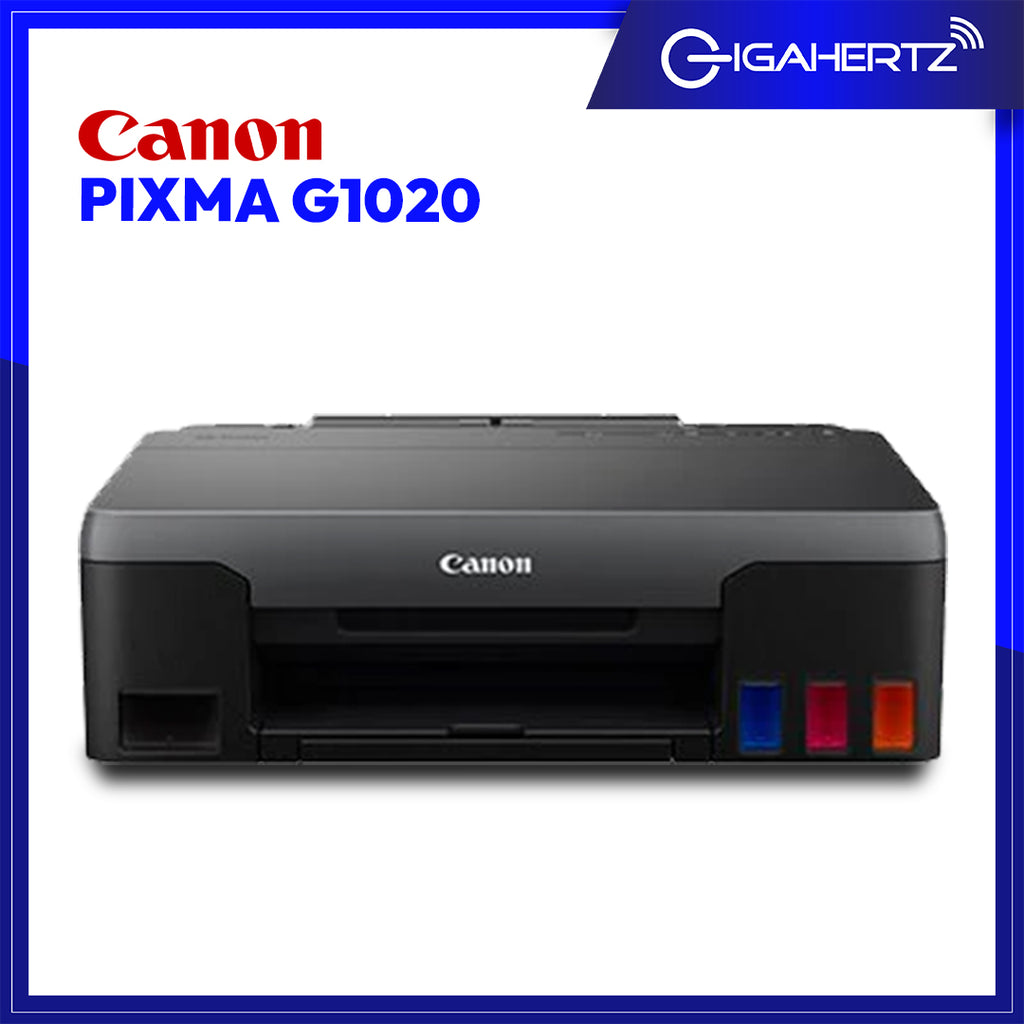

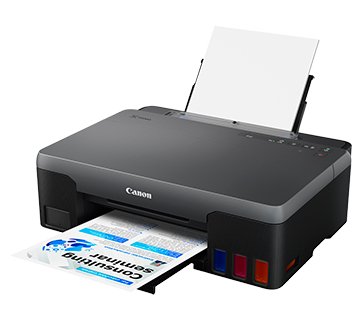

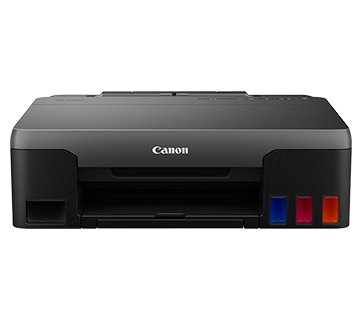

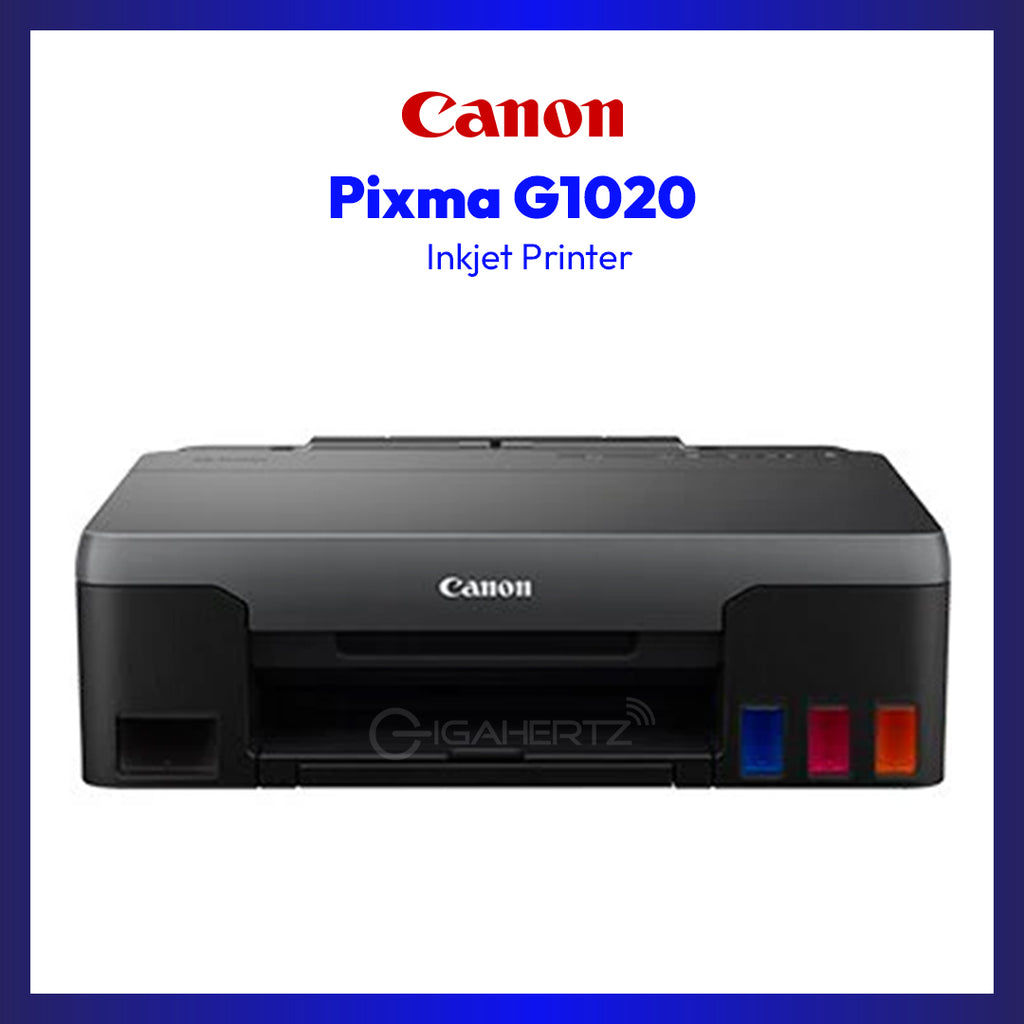

PIXMA G1020
Easy Refillable Ink Tank Printer for High Volume Printing
Designed for high-volume printing, this affordable printer combines low-cost printing with convenient maintenance.
- Print Speed (A4, ISO): up to 9.1 / 5 ipm (mono/color)
- USB 2.0
- Recommended Monthly Print Volume: 150 - 1,500 pages
Number of Nozzles |
Total 1,792 nozzles |
Ink Bottles (Type / Colours) |
GI-71 |
Maintenance Cartridge |
MC-G02 |
Maximum Printing Resolution |
4,800 (horizontal)*1 x 1,200 (vertical) dpi |
Print Speed*2(Approx.) Based on ISO/IEC 24734 |
|
Document (ESAT/Simplex) |
9.1 / 5 ipm (mono/colour) |
Document (FPOT Ready / Simplex) |
9 / 16 sec (mono/colour) |
Photo (4 x 6") (PP-201/Borderless) |
45 sec |
Printable Width |
Up to 203.2 mm (8") |
Printable Area |
|
Borderless Printing*3 |
Top/Bottom/Left/Right margin: each 0 mm |
Bordered Printing |
LTR/LGL: |
Support Media |
|
Rear Tray |
Plain Paper (64 - 105g/m²) |
Paper Size |
|
Rear Tray |
A4, LTR, LGL, 4 x 6"
|
Paper Size (Borderless)*4 |
A4, LTR, 4 x 6" |
Paper Handling (Maximum Number) |
|
Rear Tray |
Plain Paper (A4, 64 g/m²) / LTR = 100 |
Paper Weight |
|
Rear Tray |
Plain Paper: 64 - 105 g/m² |
Ink End Sensor |
Dot count type |
Print Head Alignment |
Manual |
System Requirements*5
|
Windows 10 / 8.1 / 7 SP1 |
General Specifications
Interface |
USB 2.0 |
Operating Environment*6 |
|
Temperature |
5 - 35°C |
Humidity |
10 - 90% RH (no dew condensation) |
Recommended Environment*7 |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Storage Environment |
|
Temperature |
0 - 40°C |
Humidity |
5 - 95% RH (no dew condensation) |
Quiet Mode |
Available |
Acoustic Noise (PC Print) |
|
Plain Paper (A4, B/W)*8 |
49.5 dB(A) |
Power |
AC 100-240V, 50/60Hz |
Power Consumption (Approx.) |
|
OFF |
0.2W |
Standby |
0.6W |
Printing*9 |
15 W |
Duty Cycle |
Up to 3,000 pages/month |
Dimension (WxDxH) (Approx.) |
|
Factory Configuration |
445 x 330 x 135 mm |
Output/ADF trays extended |
445 x 564 x 249 mm |
Weight (Approx.) |
4.8 kg |
Page Yield
Plain Paper (A4 pages) |
Standard: |
Photo Paper (PP-201, 4 x 6") |
Standard: |
- Ink droplets can be placed with a pitch of 1/4800 inch at minimum.
- Document print speeds are the average of ESAT (Word, Excel, PDF) in Office Category Test for the default simplex mode, ISO/IEC 24734.
Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
- Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers.
- The following media does NOT support borderless printing: High Resolution Paper, T-Shirt Transfer, Photo Stickers.
- Please visit https://asia.canon to check OS compatibility and to download the latest driver updates.
- The performance of the printer may be reduced under certain temperature and humidity conditions.
- For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions.
- Acoustic Noise is measured based on ISO7779 standard with default setting.
- Print: When printing ISO/JIS-SCID N2 on A4 size plain paper using default settings.
- Declared yield value in accordance with ISO/IEC 24711 (for A4 size) using ISO/IEC 24712 test file, and ISO/IEC 29102 (for 4x6" size) using ISO/IEC 29103 test file. Values obtained by continuous printing.
- The economy mode reduces the black ink consumption by lowering the density, up to 38% more pages than the standard mode can be printed.
- Black ink is not used when printing under this condition. However, a minimal amount of black ink is used for maintenance purpose.
