Model

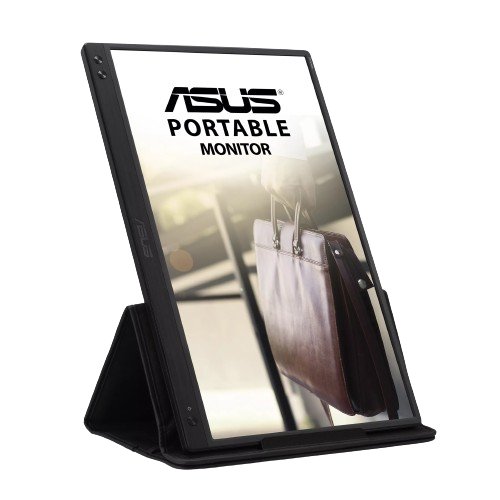

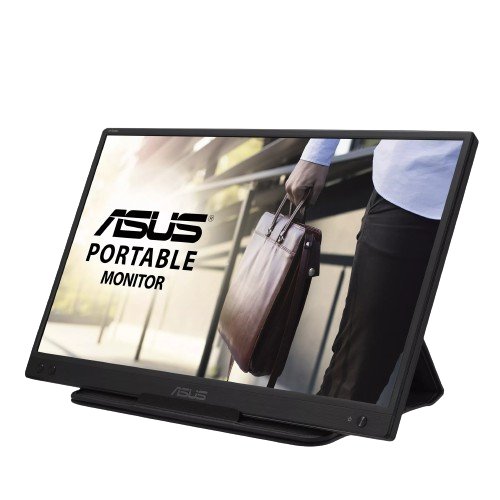

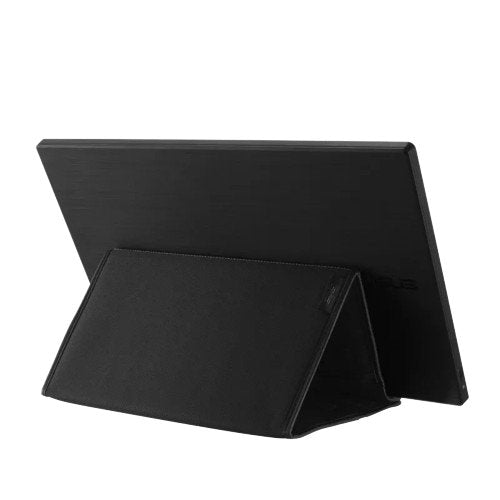

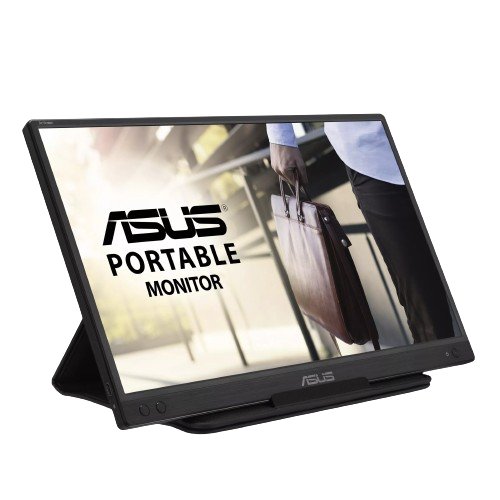

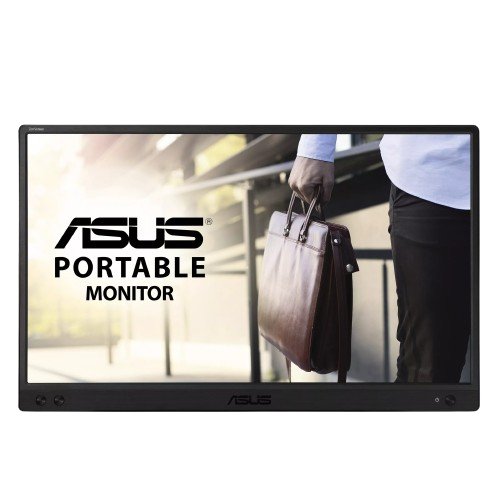

ASUS ZenScreen MB166C
Display
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 800:1
Display Colors : 262K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes
DisplayWidget : Yes
Low Blue Light : Yes
Audio Feature
Speaker : No
I/O Ports
USB-C x 1 (DP Alt Mode)
Signal Frequency
Digital Signal Frequency : USB-C: 24-83KHZ (H) / 60Hz(V)
Power Consumption
Power Consumption : 5.24 W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design
Height Adjustment : No

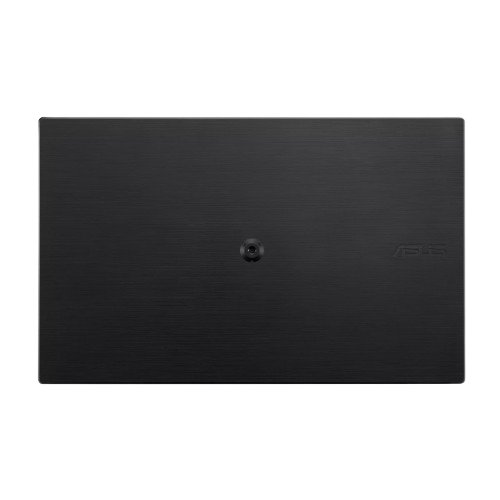

1/4" Tripod Socket : Yes
Dimensions (Esti.)
Phys. Dimension without Stand (W x H x D) : 36.01 x 22.56 x 1.18 cm (14.18" x 8.88" x 0.46")
Box Dimension (W x H x D) : 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")
Weight (Esti.)
Net Weight without Stand : 0.78 kg (1.72 lbs)
Gross Weight : 1.7 kg (3.75 lbs)
Accessories (vary by regions)
Quick start guide
USB-C cable
Warranty Card
ZenScreen sleeve
Certificate
TÜV Flicker-free
TÜV Low Blue Light
