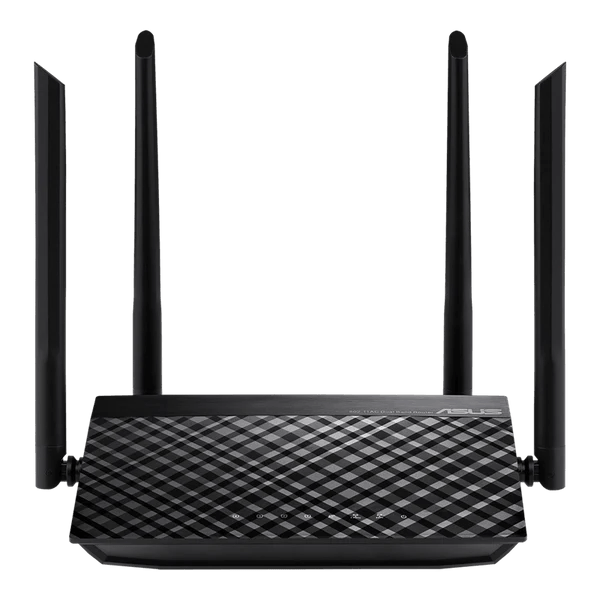

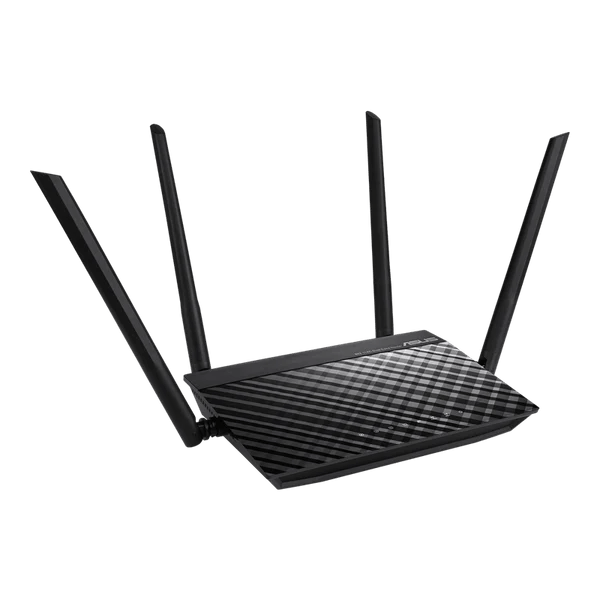

Asus AC750 Wifi Router Dual Band RT-AC750L

With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. On top of a 30-second setup, multi-device detection, and flexible settings that make the most of your network performance. Dual WAN enables having two connections/ISPs on one router, with load balance and failover mode for added stability and redundancy to ensure uninterrupted internet access. Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the RT-AC750L has Quality of Service (QoS) standards that let you select how much bandwidth is prioritized for virtually any task. Plus, the traffic monitor allows you to check your Web usage in a clear graphical interface.

Control your network anywhere
In your increasingly mobile-enabled life, having control over your network via an app is more important than ever. The new ASUS Router App is built from the ground up to be both intuitive and robust, allowing you to set up your router, manage network traffic, diagnose connection issues and even update firmware, all without needing to boot up a PC.

Super-fast AC Wi-Fi with 256QAM™ Wi-Fi acceleration
Powered by 5th generation Wi-Fi (5G Wi-Fi), the 802.11ac chipset gives the RT-AC750L faster wireless speeds than N technology. At 2.4 GHz, it reaches 300 Mbps, while on the 5GHz band, it blazes to 433 Mbps. The upgraded bandwidth has the higher capacity you need to increase Wi-Fi enjoyment at home. With notebooks, desktops, pads, and smartphones now all Wi-Fi-reliant, it’s time to upgrade to the next generation to expand you connectivity now and in the future.

Dual-Band Connectivity for Lag-Free Entertainment
Delivering both 2.4 GHz and 5 GHz concurrent bands up to 300Mbps and 443Mbps respectively, the RT-AC750L has a total speed of up to 733Mbps connectivity to provide speed with stability. Perform basic internet tasks like Web browsing and file downloading under the 2.4 GHz band, while also simultaneously streaming 3D HD content and other demanding applications smoothly on the 5 GHz band.



• Concurrent 300 Mbps(2.4GHz) and 433 Mbps (5GHz) throughput for high-speed wireless performance.
• Enjoy the ASUSWRT dashboard UI for easy setup and manage your router.
• Improved coverage and multi-device performance with four external antennas — two each for the 2.4 GHz and 5 GHz bands.
• Advanced parental control helps you protect your children from Internet addiction. You can restrict the times that each device can access the internet by applying scheduled time limits.
• ASUS Router App makes your connected life easier!

Specifications:

Model Name RT-AC750L
Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.11i
• IEEE 802.11e
• IPv4
• IPv6

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• 802.11n : up to 300 Mbps
• 802.11ac : up to 433 Mbps

Antenna

• External antenna x 4

Transmit/Receive

• MIMO technology
• 2.4 GHz 2 x 2
• 5 GHz 2 x 2

Memory

• 16 MB Flash
• 64 MB RAM

Operating Frequency

• 2.4GHz
• 5GHz

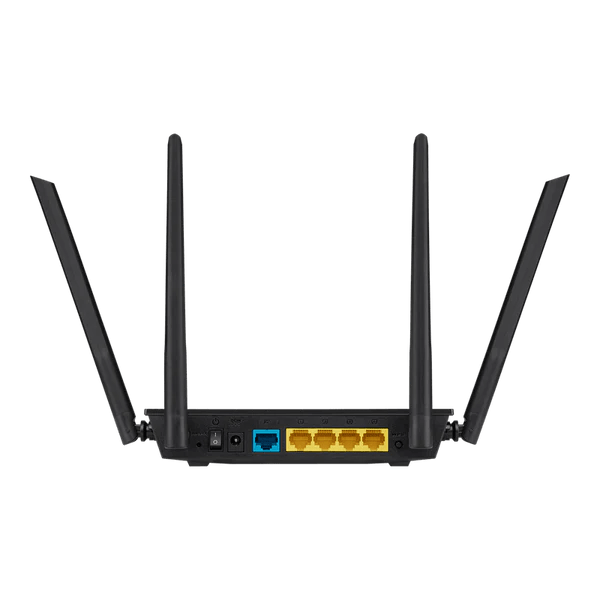

Ports

• RJ45 for 10/100Mbps BaseT for WAN x 1
• RJ45 for 10/100Mbps BaseT for LAN x 4

Button

• WPS Button, Reset Button, Power Button

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 0.5 A current

Package content

• RT-AC750L Wi-Fi router
• 1 x RJ-45 cable
• 1 x Power adapter
• 1 x QSG
• 1 x Warranty card

Product Weight (g)

• 271 g

AiMesh

• AiMesh:No
• Primary AiMesh router:No
• AiMesh node:No

Router APP

• ASUS Router APP:Yes

Game

• Game Boost/acceleration:No
• WTFast:No

Alexa

• Support Alexa skill:No

IFTTT

• Support IFTTT:No

AiProtection

• AiProtection:No
• Router Security Assessment:No
• Malicious site blocking:No
• Two-Way IPS:No
• Infected Device Prevention and Blocking;No

Parental Control

• Parental Control:Yes
• Parental Control Customized Internet schedule:Yes

Traffic Control

• Adaptive QoS:No
• Bandwidth Monitor:No
• Bandwidth limiter:Yes
• Maximum Bandwidth limiter rule:32
• Traditional QoS:Yes
• Maximum Traditional QoS rule:32
• Traffic Monitor:Yes
• Real-time traffic monitor:Yes
• Wired Traffic Monitor:Yes
• Wireless Traffic Monitor:Yes
• Traffic Analyzer:No
• Traffic analysis period:Daily, Weekly, Monthly
• Website history:No

Wireless

• IPv6:Yes
• MU-MIMO:No
• Wi-Fi Encryption:Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
• UTF-8 SSID:Yes
• Guest Network:Yes
• Maximum Guest Network rule:2.4GHz x3, 5GHz x3
• Guest Network Encryption:Open system, WPA/WPA2-Personal
• WPS:Yes
• Wi-Fi MAC address filter:Yes
• Maximum MAC filters:64
• Wireless scheduler:Yes
• Airtime fairness:Yes
• RADIUS Server:Yes
• Universal beamforming:No
• Explicit beamforming:Yes

WAN

• Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN:No
• WAN Aggregation:No
• 3G/4G LTE dongle:No
• Android tethering:No
• Port forwarding:Yes
• Maximum port forwarding rule:64
• Port triggering:Yes
• Maximum port triggering rule:32
• DMZ:Yes
• DDNS:Yes
• NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
• LAN
• DHCP Server:Yes
• IGMP snooping:Yes
• IPTV:Yes
• LAN Link Aggregation:No
• Manually assign IP address:Yes
• Maximum manually assign IP address rule:64

VPN

• VPN Client L2PT:No
• VPN Client OVPN:No
• VPN Client PPTP:No
• VPN Server IPSec:No
• VPN Server OVPN:No
• VPN Server PPTP:No
• VPN Fusion:No

USB application

• File System:FAT16, FAT32, NT3G
• 3G/4G LTE dongle:No
• HDD hibernation:No
• Safely Remove disk:No
• AiCloud:No
• Download master:No
• AiDisk:No
• Media Server:No
• Time Machine:No
• Samba Server:No
• FTP Server:No
• Shared Folder privileges:No

Administration

• Operating mode:Accesspoint, Router
• Operating system:ASUSWRT
• Free OS upgrade:Yes
• Firewall:Yes
• Maximum Firewall keyword filter:64
• Maximum Firewall network service filter:32
• Maximum Firewall URL filter:64
• Wake on LAN (WOL):Yes
• SSH:Yes
• Configuration backup and restore:Yes
• Diagnosis tools:Yes
• Feedback system:Yes
• System log:Yes
